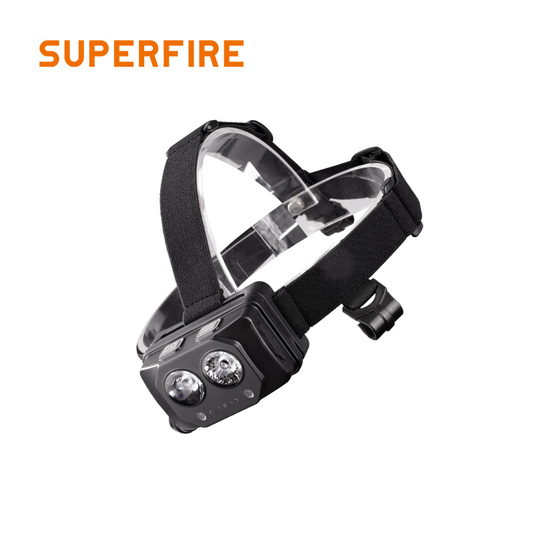

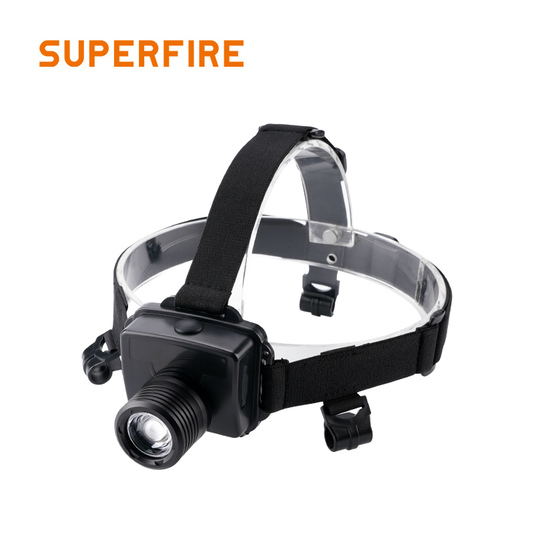

방폭 핸드 헬드 손전등 및 헤드 램프는 가연성 가스 또는 증기가있을 수있는 위험한 환경에서 안전한 작동을 보장하기 위해 강력한 기능으로 설계되었습니다. 이전문 led 토치부식 및 충격에 강한 내구성있는 재료로 제작되어 폭발성 대기에서 사용하기위한 엄격한 안전 표준을 충족합니다. 그들은 에너지 소비를 최소화하면서 밝고 신뢰할 수있는 조명을 제공하기 위해 고효율 LED 기술을 사용합니다. 방화 토치 조명 및 방화 토치 라이트로서 폭발 위험이 우려되는 석유 및 가스, 광업, 화학 공장 및 소방과 같은 산업에서 필수적인 도구입니다. 이러한 조명은 작업자의 가시성과 안전을 보장하여 위험한 위치에서 효율적이고 안전하게 작업을 수행 할 수 있습니다.
Selecting the correct explosion proof led flashlight is not just about brightness; it’s about matching the device’s safety specifications to your specific work environment. Follow these three critical steps to ensure compliance and safety:
1. Identify the Hazardous Zone Rating
Hazardous locations are classified into zones based on the frequency and duration of the presence of explosive gases or vapors. Ensure your torch is certified for the correct area:
Zone 0: Explosive atmosphere is present continuously or for long periods. Requires the highest level of protection (Intrinsically Safe).
Zone 1: Explosive atmosphere is likely to occur in normal operation.
Zone 2: Explosive atmosphere is unlikely to occur, or only for a short time.
2. Match the Temperature Class (T-Rating)
Every flameproof safety torch has a T-rating (T1 to T6) that indicates its maximum surface temperature. To prevent ignition, the torch's T-rating must be lower than the auto-ignition temperature of the gases in your environment. For example, a T4 rated flashlight (max 135°C) is a versatile choice for many industrial chemical applications.
3. Evaluate Material Integrity & Spark Resistance
The casing of a spark proof flashlight must prevent both electrical and mechanical sparks.
Anti-static Polymers: Essential for plastic-bodied torches to prevent static buildup.

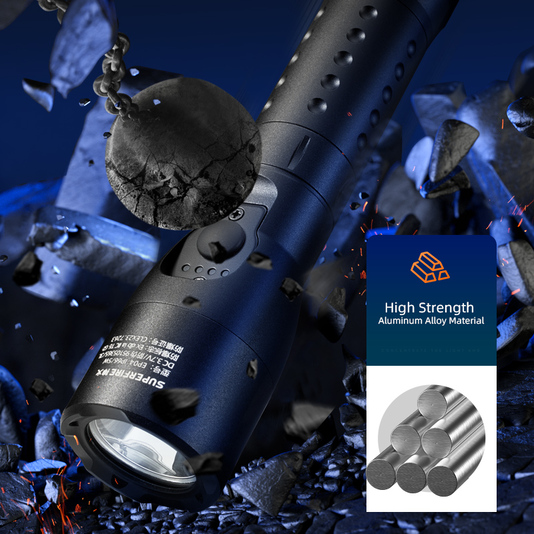

Non-corrosive Aluminum: High-strength, aircraft-grade aluminum is ideal for gas proof flashlights used in rugged mining or oil & gas sites, as it provides impact resistance without creating frictional sparks.
4. Check for International Certifications
Always verify that your torch light explosion proof unit carries recognized marks such as ATEX (Europe), IECEx (Global), or UL (North America). These certifications guarantee that the unit has undergone rigorous testing under pressure and thermal stress.
While often used interchangeably, they represent different protection methods. A flame proof torch (Ex d) is built with a heavy-duty enclosure designed to contain an internal explosion and cool the escaping gases so they cannot ignite the external atmosphere. In contrast, a spark proof flashlight (also known as intrinsically safe or Ex i) focuses on prevention; its circuits are limited to low energy levels that are incapable of generating a spark or thermal effect sufficient to cause ignition. Both are essential for hazardous site safety but satisfy different regulatory requirements.

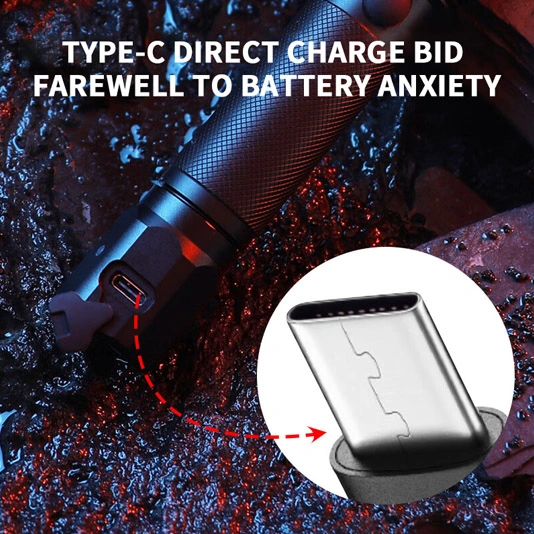

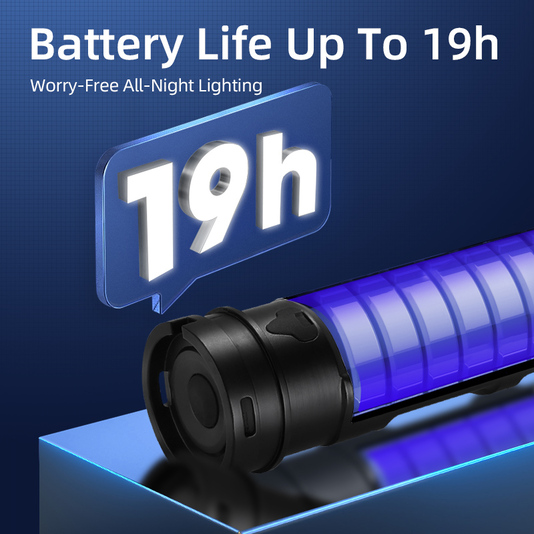

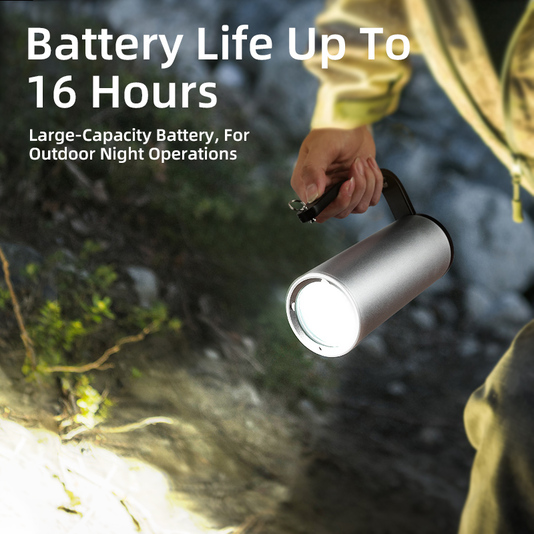

Yes. Our explosion proof rechargeable flashlights are equipped with high-capacity, thermally protected lithium-ion batteries specifically engineered for industrial endurance. To ensure total safety, these units feature sealed, anti-arcing charging ports and integrated BMS (Battery Management Systems) that prevent overcharging and short circuits, allowing for safe, repetitive use in demanding field environments.
Gas proof flashlights are mandatory in any "Class I" environment where flammable gases, vapors, or mists may reach explosive concentrations. This includes:
Oil & Gas Refineries: Monitoring pipelines and storage tanks.
Chemical Processing Plants: Handling volatile solvents and reagents.
Wastewater Treatment: Areas where methane gas commonly accumulates.
Firefighting & Rescue: Entering unknown, potentially combustible atmospheres.
Using a certified spark proof torch in these sectors is critical for both worker safety and legal regulatory compliance.

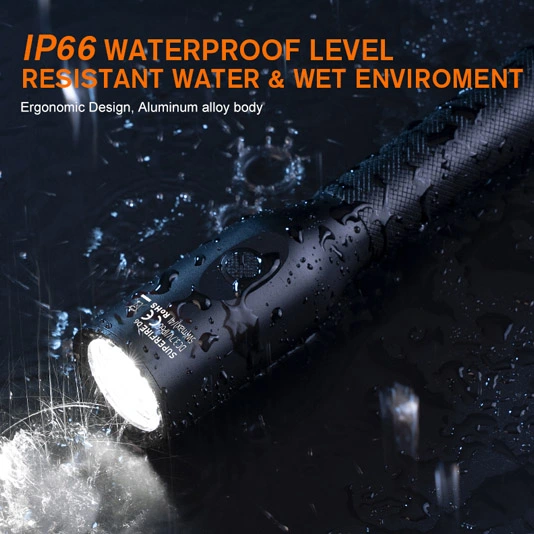

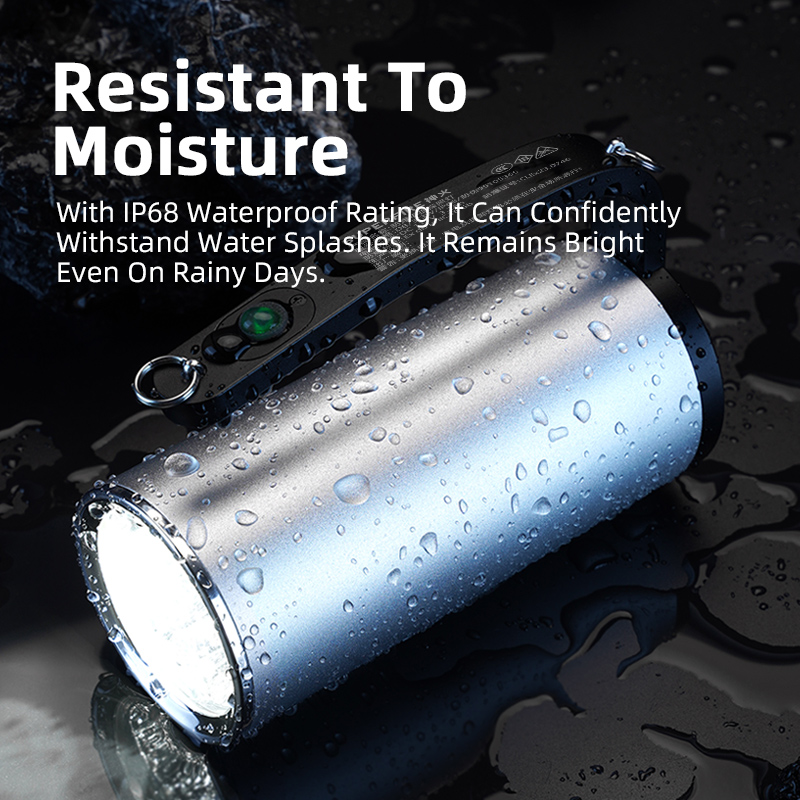

Absolutely. Our fire proof torch light units are typically dual-certified for both Gas (Zone 1/2) and Dust (Zone 21/22) hazards. With IP66/IP68 ingress protection, they prevent fine combustible dust (like grain or coal dust) from entering the casing, making them a versatile safety tool for grain silos, mining, and textile mills.
